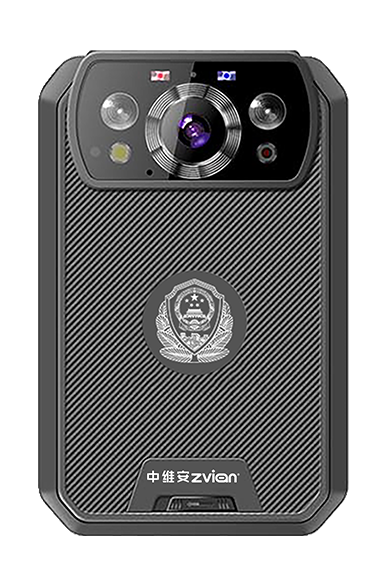

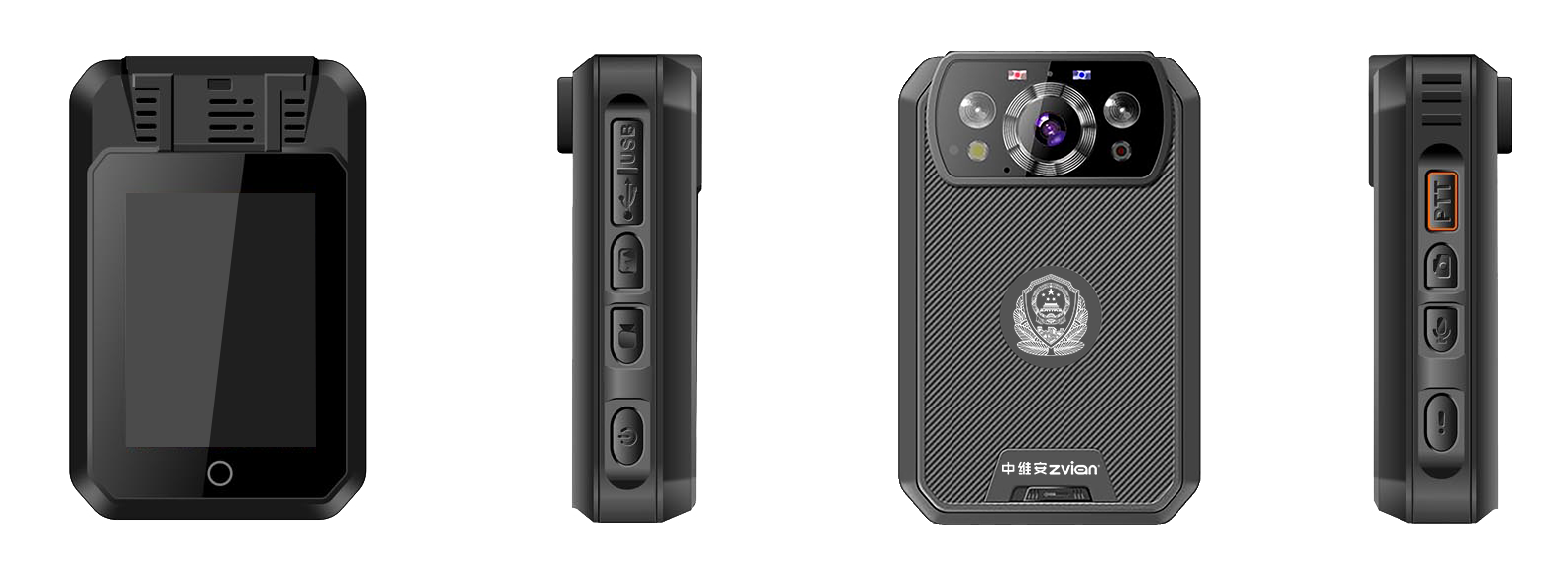

8-core 64-bit 4G Netcom Law Enforcement Recorder
H.265 efficient encoding, efficient use of storage space
One-key PTT voice intercom, clear call without noise
External camera/headset to meet the needs of multiple scenes
Support platform leasing, high cost performance
Comply with GA/T 947-2015 line standard
Product specification
| Product name |
4G intelligent law enforcement recorder |
|
| Product model |
ZWA-ZWAP5A1 |
|
| Product characteristics |
l Full Netcom 4G intelligent video and audio recorder, 8 core 64-bit CPU, 2G running memory, maximum support 256G storage, high performance and low power consumption Industry-leading H.265 coding technology is adopted to save storage space and transmission traffic 46 million HD video recording, support 1080P HD wireless real-time image transmission, synchronous cloud and local HD video storage Voice intercom, in the state of sleep or wake up, quickly achieve voice intercom, clear call without noise l Type-C port can be used for external HD cameras and earphones to meet application requirements in more scenarios l Support functional applications and data storage to reduce user deployment, use and maintenance costs |
|
| Basic parameter |
Operating system |
Android |
| CPU |
8-core 64-bit chip |
|
| Internal memory |
2GB(RAM), 32G(ROM) |
|
| Display screen |
2.4 "IPS full-view high-light capacitive touch display |
|
| camera |
CMOS lens, single shot |
|
| Data interface |
Type-C and Mrico USB interface/Bluetooth 4.0 |
|
| T-flash card |
Supports a maximum of 256 GB |
|
| communication |
linear |
4G full Netcom, 7 mode 13 frequency, support telecom, mobile, Unicom |
| Network standard |
LTE FDD/TDD R12 Cat-7 with 2CA DL/ 2CA UL DC-HSPA+, TD-SCDMA, EDGE CDMA2000 1x/EVDO Rev. A (SRLTE) |
|
| WIFI function |
Built-in WIFI function, can also support 802.11B/G/N/AC |
|
| positioning |
Support Beidou /GPS/ Beidou +GPS |
|
| video |
Video codec |
H.265/H.264 encoding |
| Code stream |
Dual stream |
|
| Video resolution |
1080P /720P/480P, MPEG format |
|
| Photo resolution |
46 million effective pixels saved in JPG format |
|
| walkie-talkie |
flop |
High power amplifier to meet the needs of intercom |
| Video intercom |
Supports 1080P/720P high-fidelity video calls |
|
| other |
key |
Power button/Mark button /PTT button /SOS button/Photo button/Video button/recording button/Multi-function button/Virtual button |
| Pilot lamp |
Supports red and blue flash/white light/infrared night vision/warning light |
|
| Class of protection |
IP68, 2m fall protection |
|
| battery |
3050mAh removable battery |
|
| External equipment |
Support external HD digital camera, support external high fidelity intercom headset |
|
| Product size |
90*58*27 (mm), bare weight 150g (without back clip) |
|
| Packing list |
Host *1, back clip *1, power adapter *1, USB cable *1, manual *1 |
|
* Disclaimer: Due to the continuous progress of technology, if the product design and specifications are changed, our company reserves the right not to notify, and this product specification can not be used for contract signing and project acceptance.
