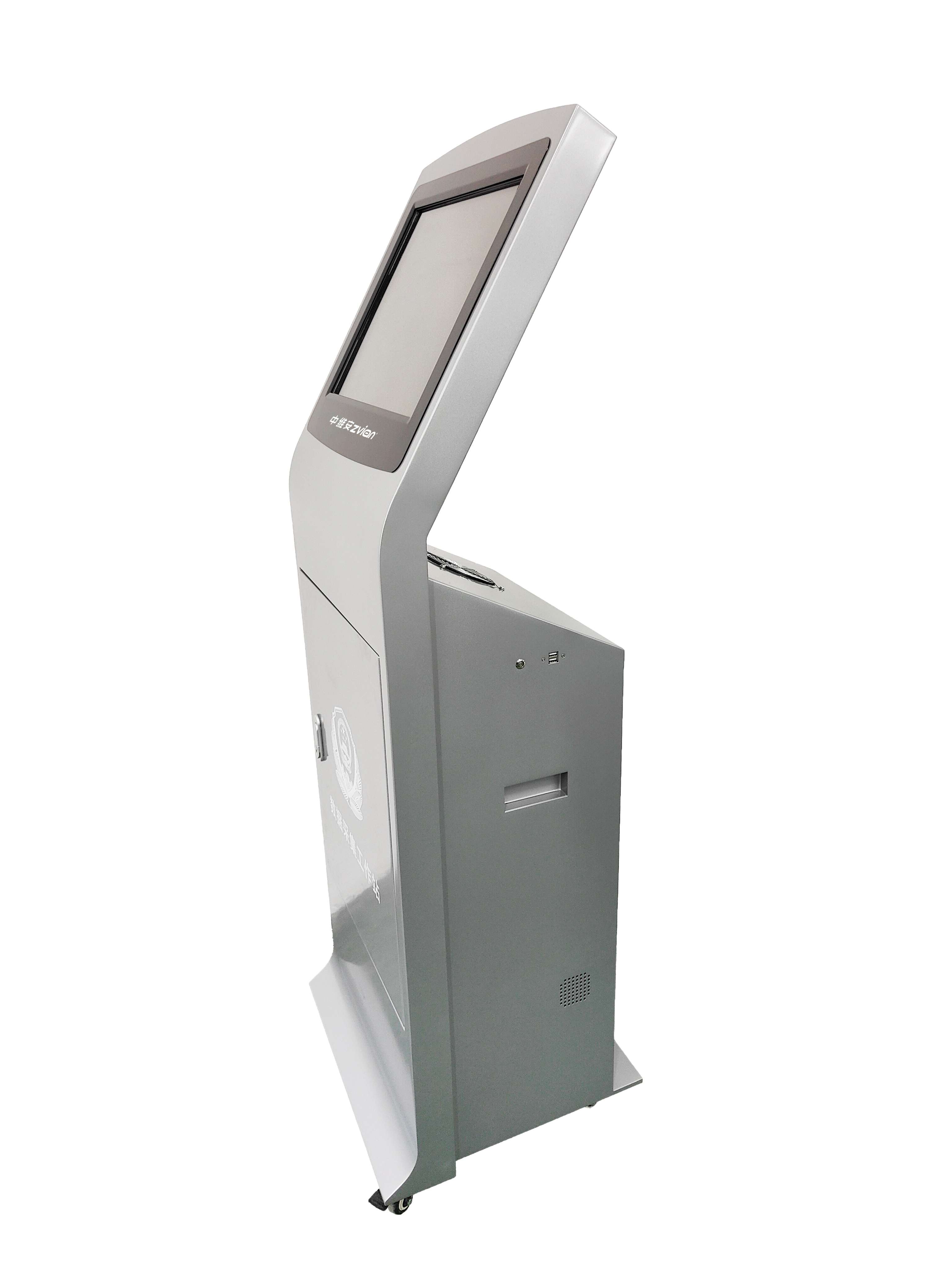

Product model

ZCS-ZWAZ3

System software

Operating system

Win7 64-bit (optional win10 64-bit)

Acquisition software

Zhongwei security single police law enforcement video audio recorder data management system

Hardware configuration

Display screen

19 inch LCD infrared touch screen, resolution 1280*1024

Number of access enforcement devices

Access 20/25 law enforcement recorders at the same time, charge and upload data at the same time

Storage hard disk

Supports a maximum of 8 hard disk bits, and a single disk supports a maximum of 8TB

Power source

AC220V power supply, 500W

USB interface

USB 3.0 HUB, transmission rate ≥400M/ min

Main function

Automatic charging

Automatically charge the law enforcement instrument and simultaneously charge multiple access law enforcement instruments

Automatic time correction

Automatically corrects the time of the law enforcement instrument, accurate to "year, month, day, hour, minute, second"

Data acquisition

Automatic collection of law enforcement instrument video, audio, photo and other data

Data management

Can browse, retrieve, upload the collected video and audio, audio, photos and other data

Data clearing

Automatically clear the internal data of the law enforcement instrument after the data upload has been completed

Data storage

The data can be classified and saved according to the product serial number, alarm number, time, file type and other conditions

Data backup

The device has the redundancy backup function. If a disk fails, data cannot be written and stored data cannot be lost. (Optional)

Information and status display

The device information, total storage capacity, and remaining storage capacity are displayed. If the port is not connected to the law enforcement instrument, the port status is idle

File format conversion

The device can convert MP4, AVI format video files to flv format in batches after data collection

User rights management

You can set operation rights. Only authorized users can operate the device. You can use passwords to authorize users

The screen display corresponds to the physical collection location

The interface number displayed on the device corresponds to the location of the physical collection interface

Characteristic function

Data integrity

The law enforcement has cancelled the data import during the collection process or the unexpected disconnection such as power failure, the data is not lost and the data collection can automatically continue after the next boot

Fault alarm

When network interruption, memory overflow, and hard disk removal occur, the device will send an alarm

Timing error

The timing error between the device time and the standard time is less than or equal to 3s/d

Electric strength

Can withstand 45-60Hz AC voltage, lasting one minute without breakdown and flaring phenomenon

Management software

Data browsing

Management software can play back audio and video, view photos and logs

File mark

Through the software, you can mark the "key files" and add text remarks

Data retrieval

Through the software, you can query according to the data type, and can support one or more conditions

Data deletion

The data can be deleted manually or automatically according to the set schedule, and the key files that have been marked are not deleted

Information editing

The user information of the recorder connected to the data management workstation can be edited by the software

User rights management

Users can be added, authorized, and deleted through the software, and users can be managed by level

Data download

Download and save the audio and video data uploaded by the data management workstation through the software

Data statistics

Through the software can be stored video and audio data statistics

Parameter configuration

User information, unit information, data storage time and time parameters can be configured through software

Time correction

The management software corrects the time of the collection station connected to it to the accuracy of "year, month, day, hour, minute, second".

Condition monitoring

The management software can detect the network connection status of the collection station in the system, the total capacity of the hard disk, the used capacity, the remaining capacity, the capacity utilization rate, and the number of files

Log function

The software logs system running status and operations, including user login time, data query time, download time, and deletion time

Login mode

You can log in to the management platform using the client software or Internet Explorer

Data directory export

Through the management software, you can export data directories to generate excel tables

Working hours

7*24 hours uninterrupted work

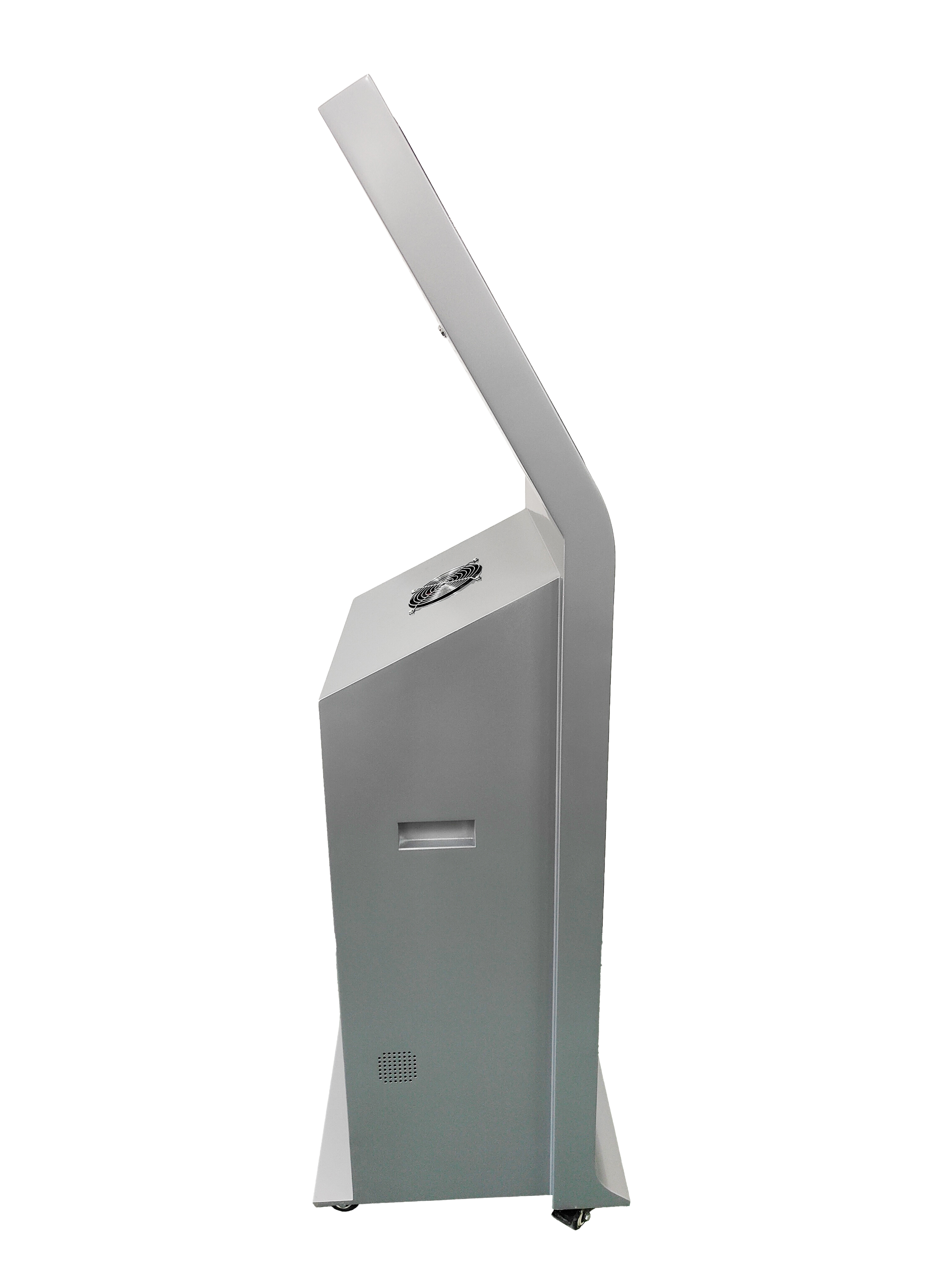

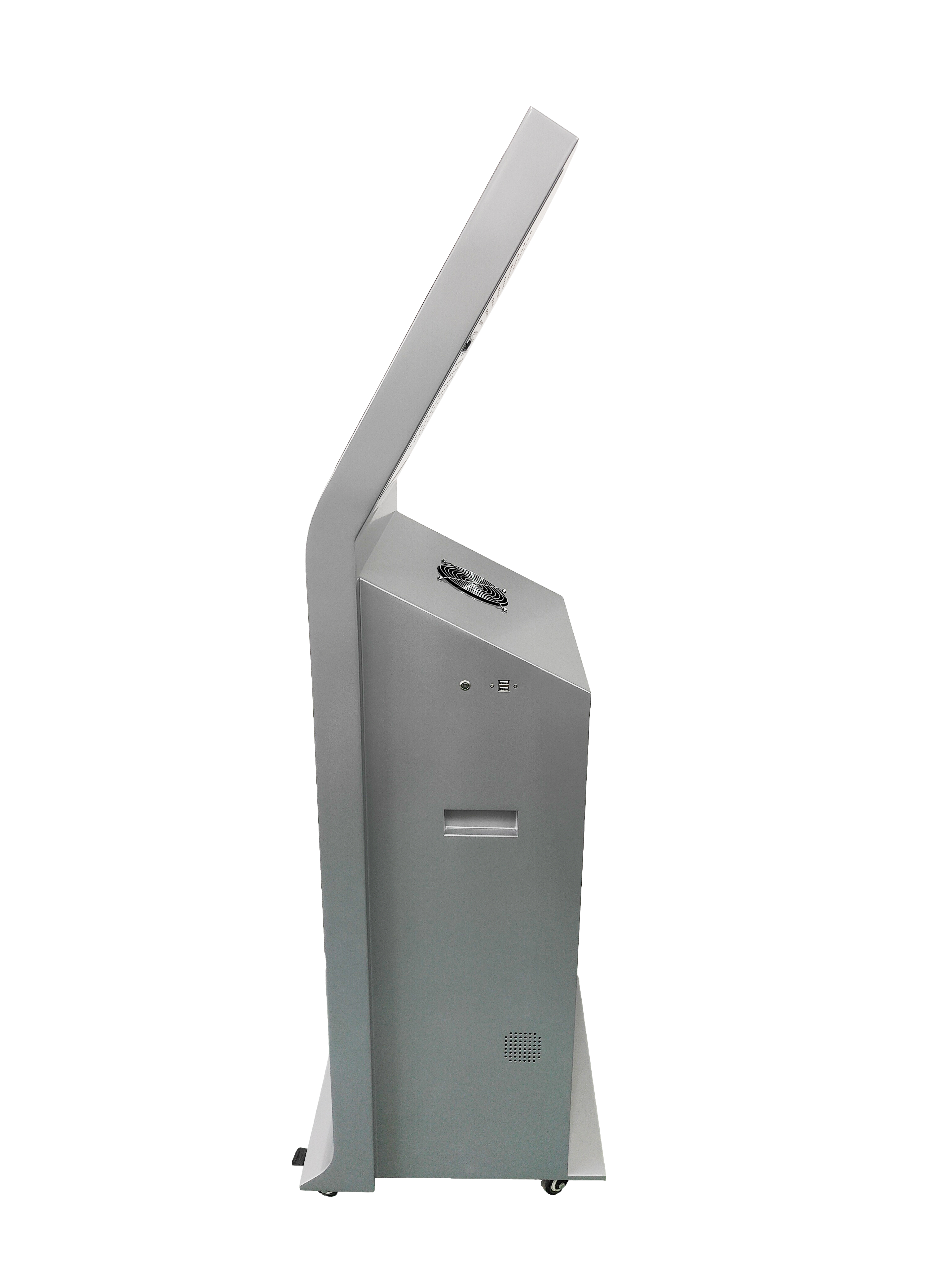

Apparent dimension

Height 1560* Width 500* Depth 470 (mm)

Machine weight

About 50kg
