Product model

ZCS-ZWAZ9

Cabinet Structure

Basic parameters

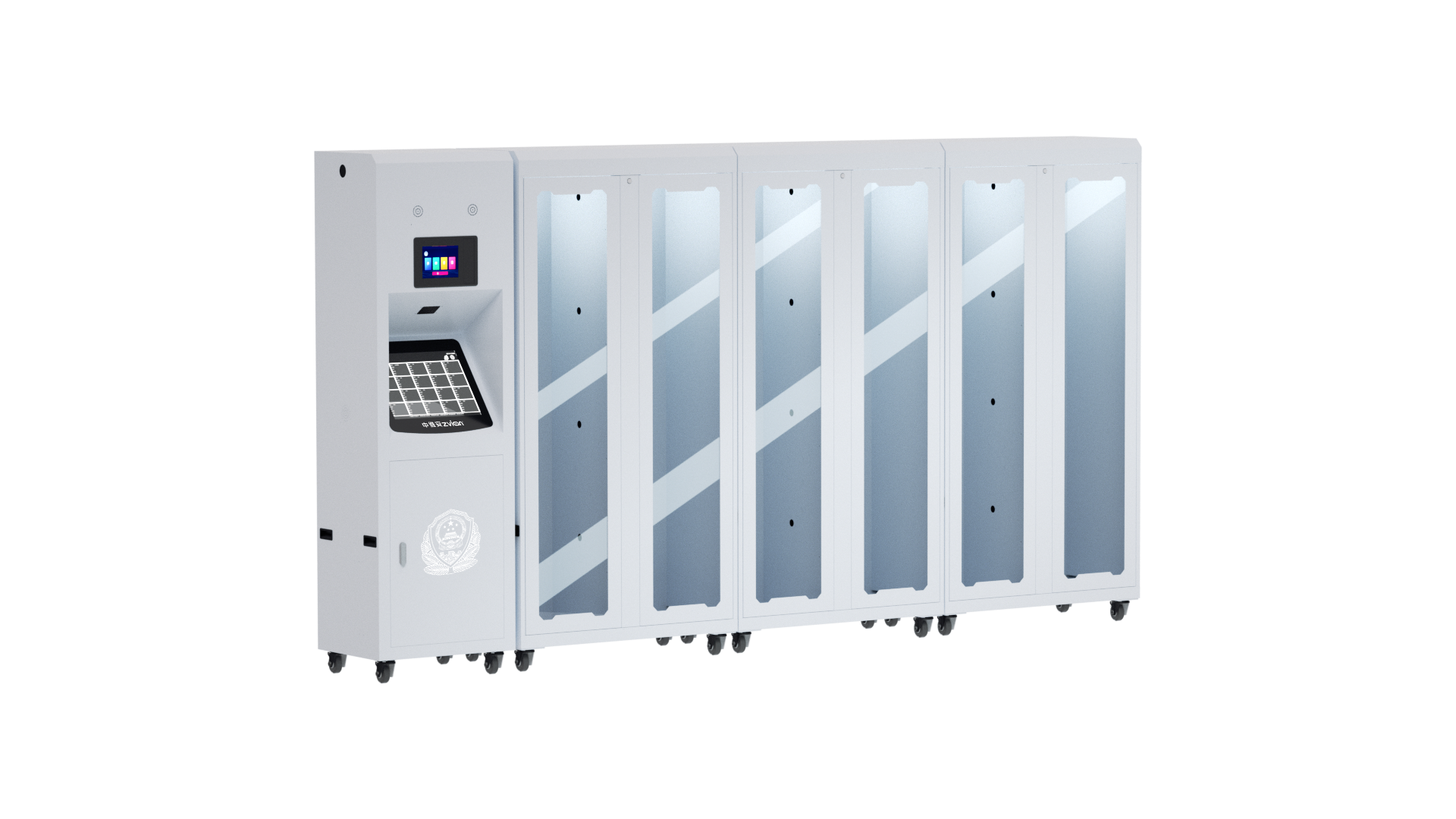

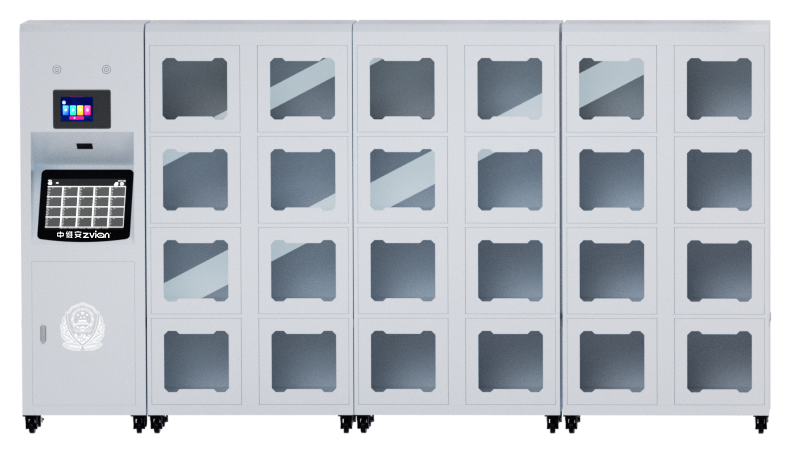

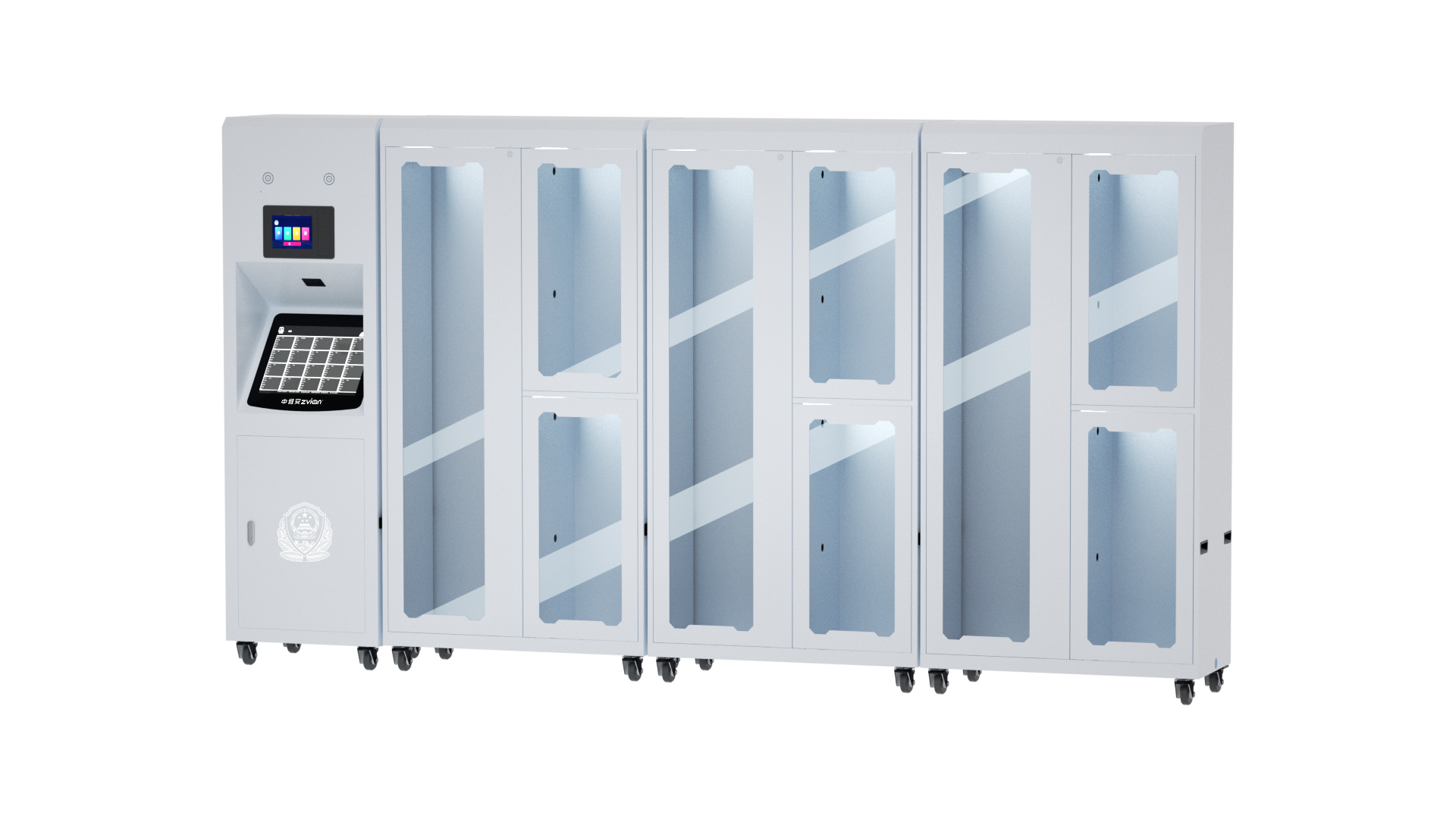

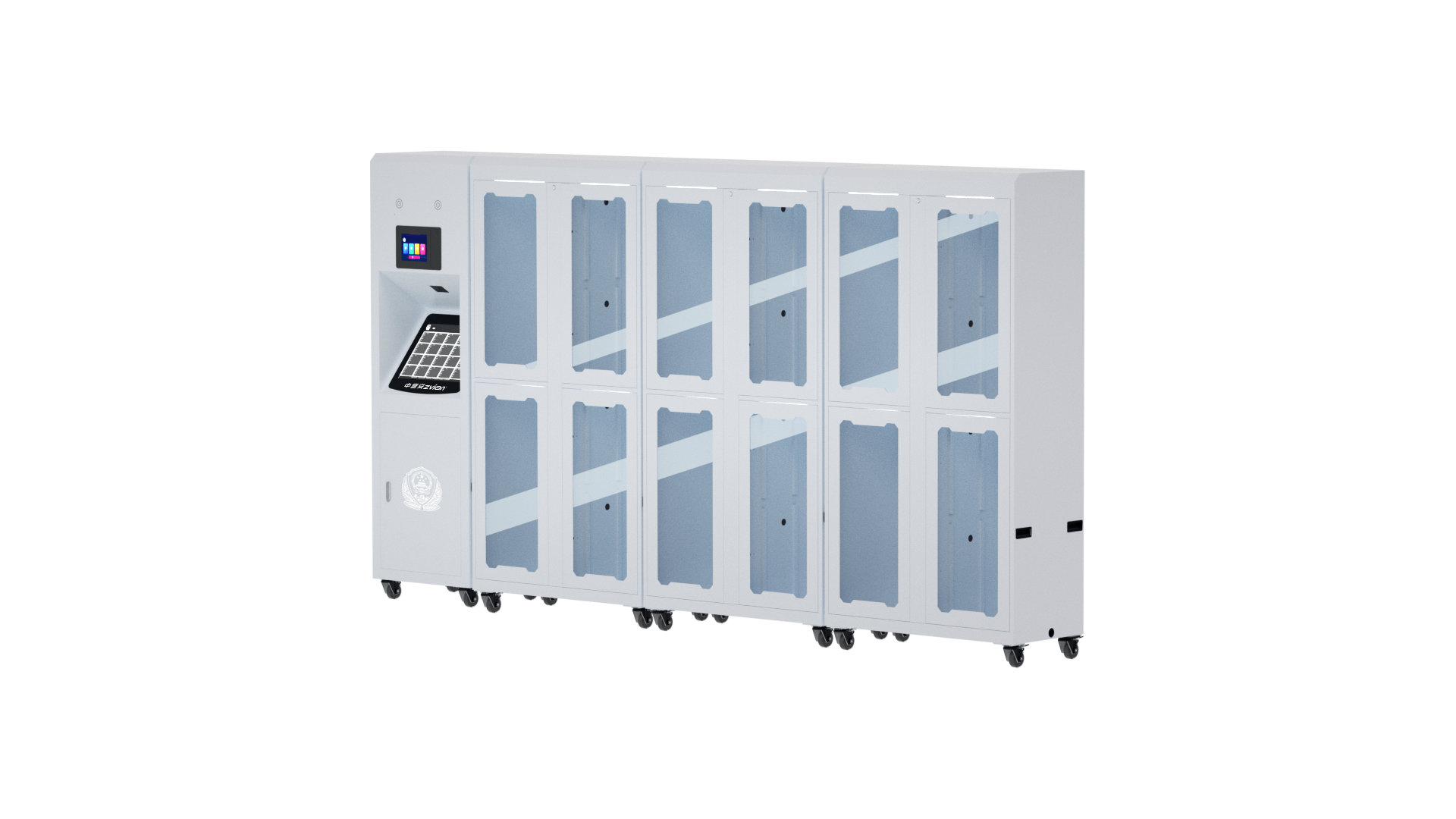

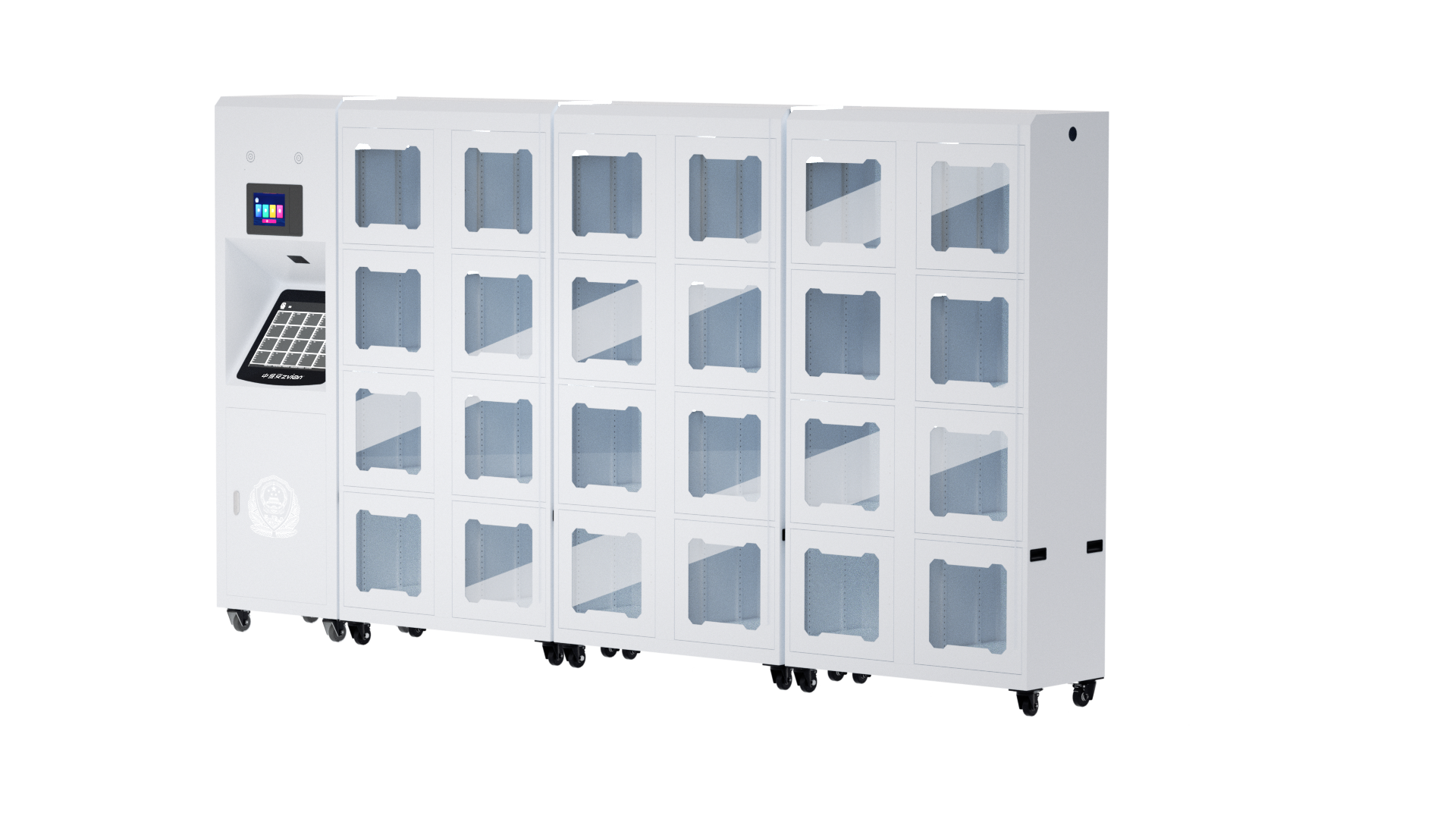

cabinet adopts main cabinet (1 set) + auxiliary cabinet design (optional 1~5 sets) modular design, which can be expanded freely. auxiliary cabinet optional :2 doors/3 doors/4 doors/8 doors

Cabinet Material

High-density cold-rolled steel sheet , Thickness of steel sheet ≥ 1.2mm

Door Panel

Acrylic , Door Installation Name Sign

Cabinet Connection

Fixed connection

Cabinets

Up and down adjustable design or detachable design

Main hardware of intelligent control system

Control host system composition

1.CPU: Intel Core I5 and above;

2. Memory: & nbsp;8GB;

3. Storage: 128GB solid state storage hard disk, single 4TB data hard disk; max support 8 blocks

4. Equipped with Intel industrial-grade main control board H81 or above, with stable operation capability of 7 脳 24 hours

5. Display: 19-inch infrared touch screen

In-Cabinet Lighting

Each cabinet compartment is equipped with independent lighting lamps, which supports the function of lighting all cells at the same time.

Cable in cabinet

The law enforcement recorder Mini-USB data transmission line * 1, compatible with the law enforcement recorder conforming to the GA/T947-2015 industry standard of the Ministry of Public Security

Equipment Rack (Optional)

Optional Police belts, retractable batons, metal handcuffs, bright flashlights for tear gas injectors, law enforcement recorders, walkie-talkies, special racks for warning lights, walkie-talkies charging base and transformer placement

Power Off Protection Device

Equipped with UPS power supply, it can continue to operate for no less than 1 hour after power failure

Electronic tag reading device

Each cabinet is equipped with an independent RFID reading device to support automatic inventory of equipment.

Cabinet function

Biometric Unlock

Fingerprint Opening , Face Opening , IC Card Opening , Password Opening , etc. all opening methods

Door Switch Record

The personnel and time of the switch cabinet door can be recorded and viewed

Physical Opening

Can support physical opening of cabinet when the power is completely disconnected

One-click Unlock

Emergency Manager can open all doors with one click

One-click emergency stop

In case of irresistible factors such as fire and earthquake, all power supplies can be cut off by one-key emergency stop

Intelligent alarm

Warning lamp: The equipment cabinet is equipped with an independent alarm lamp, which can perform sound and light alarm function under special fault conditions.

Multiple alarms

Support multiple alarms mode , such as return timeout, cabinet closing timeout, illegal cabinet opening, multiple password errors, etc.

Alarm record

Preservation period ≥ 6 months

Voice prompts

Support voice prompt function, including but not limited to user opening, abnormal alarm, information registration, etc.

Law Enforcement Recorder Data Upload

The product can be backward compatible with the existing law enforcement recorder, upward access to the existing law enforcement audio and video management platform

Law Enforcement Recorder Access Registration

When the law enforcement recorder is connected to the cabinet, the smart cabinet can obtain the serial number and alarm number of the law enforcement recorder, and complete the registration through the administrator password verification and association configuration

Data Acquisition

The equipment can automatically collect data such as video, audio , photos and logs of the registered law enforcement recorder, and verify the consistency of data

Data Browsing

The device can browse the collected data such as video and audio, audio, photos and logs

Data upload

Can automatically or manually upload video and audio, audio, photos, logs or index data to the management server, should be able to set the automatic upload time

Empty data

Can automatically or manually empty the internal data of the law enforcement recorder that has completed the data upload.

Data expiration deletion

automatically deletes data that exceeds the storage period (3 months), except for marked key files .

Time Calibration

Enables automatic time correction and synchronization of access enforcement recorders

Smart Gear

Admin Background

Smart Gear

Admin Background

Equipment registration: supports the equipment registration function, which can automatically write and bind tags to equipment without RFID tags. Equipment bound with RFID tags can be automatically identified

equipment inventory: supports automatic inventory of equipment in and out, single cabinet inventory, and real-time display of equipment in/out of the cabinet.

System architecture: The system platform needs to adopt B/S architecture, which does not limit the deployment environment and can be deployed in Windows and other operating system environments.

Home page display: graphical display, including but not limited to total number of management equipment, total number of in-stock, number of out-of-stock, overdue returned equipment, scrap reminder, equipment usage statistics, out-of-stock statistics, etc.

equipment registration: the administrator can register equipment through the browser, including but not limited to tag binding, personnel binding, equipment cabinet binding, etc.

Equipment management: the administrator should be able to manage equipment through the browser, including but not limited to equipment query, equipment allocation, equipment handover, equipment scrap, use record query, etc.

Equipment type management: the administrator can manage the equipment type through the browser, including the equipment type name, expiration time, expiration time, etc.

Equipment cabinet management: the administrator should be able to manage the equipment cabinet through the browser, including but not limited to equipment cabinet status monitoring, information modification, operation record query, etc.

Equipment cabinet allocation: the administrator should be able to allocate the personnel of the equipment cabinet through the browser, and support multiple allocation modes of 1 person cabinet, multi-person cabinet, and multi-person cabinet

Equipment library management: The system supports the management of the equipment library, including but not limited to the registration of equipment library information, inventory status, etc.

Statistical reports: the administrator should be able to view and export statistical reports through the browser, including but not limited to equipment ledgers, equipment usage statistics, equipment in/out-of-cabinet statistics, etc.

Physical Properties

Power

AC IN:100~240V;50~60Hz support overvoltage. Overcurrent/Overpower Short circuit Protection

Work Environment

Temperature:-20Temperature:-20 ℃ ~ 60 ℃, humidity:<90%

Main Cabinet Dimensions

Wide 600 * High 1900 * Deep 460(mm), No with casters

Main Cabinet Weight Quantity

Net weight approx. 65kg, gross weight approx. 110kg (wooden case)

Sub-Cabinet Dimensions

Single wide 1000 * high 1900 * deep 460(mm), no with casters

Sub Weight

Single net weight approx. 90kg, gross weight approx. 140kg (wooden case)
