Product model

ZWA-EC960S806

Product description

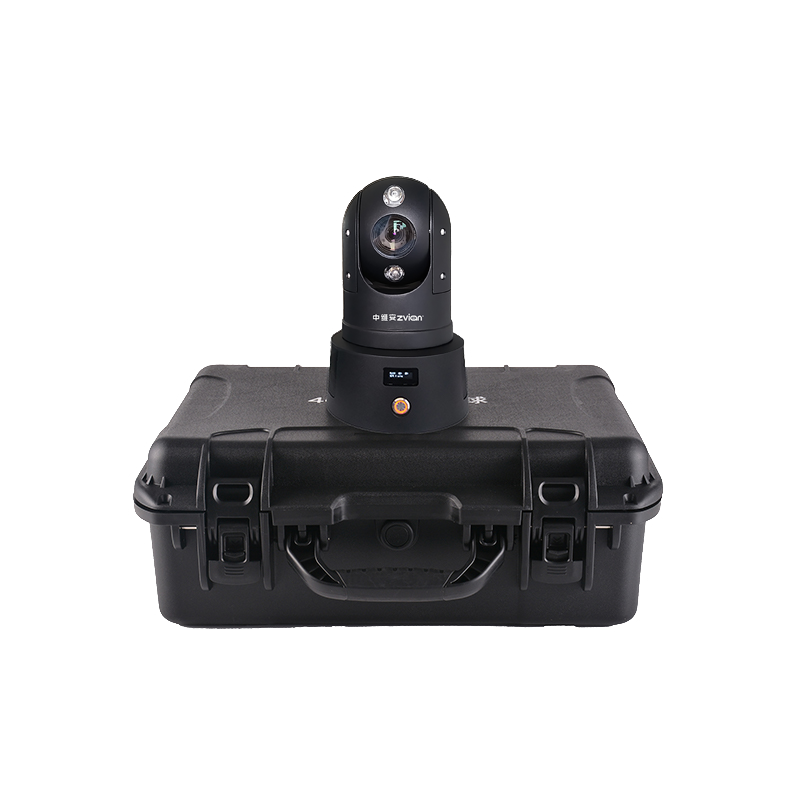

4G HD control ball S806 is a comprehensive, portable wireless video emergency command integrated product, with ultra-high equipment integration and protection level, built-in high-performance lithium battery pack, external high-definition display control terminal, standard telescopic tripod, can also be directly attached to the vehicle, the device can be quickly placed on the temporary monitoring point when performing tasks. End Remove the device quickly to meet the special requirements for temporary deployment and quick installation.

Product characteristics

l Full Netcom, 1080P HD video, H.265/H.264 video coding

l Dual stream, flexible choice of main stream/sub-stream rate, intelligent rate regulation

l Built-in GPS module, accurate positioning

l Support SD card local storage, maximum support 256GB

l Built-in battery, can work continuously for no less than 10 hours (at room temperature)

l Support remaining power display, support signal status monitoring

l Support local monitoring and 3D PTZ control

l Metal body, integrated design of built-in antenna, 360 degree omnidirectional head

l Equipped with high suction magnet at the bottom, quick installation

video

Video compression format

H.265/H.264 video compression coding

Dual stream

Primary and secondary streams

Resolution

1080P/720P/480P

Preview function

support

store

Local storage

1 SD card, maximum support 256GB

Wireless network

4G/3G

Support full Netcom or private network protocol

WIFI

Built-in WIFI module, support 802.11b/g/n

Hot spot model

Support 4G AP hotspot mode, support connection router STA mode

orientation

GPS

Built-in GPS

Extension interface

RJ45 Network port, charging port

camera

Sensor type

1/2.8" Progressive   Scan CMOS

Signal system

PAL/NTSC

Minimum illumination

0.01Lux @(F1.5,AGC ON) Color

0.005Lux @(F1.5,AGC ON) black and white

Day-night switching mode

ICR infrared filter type

Electronic shutter

1/1 second to 1/30,000 second

Resolution

1920*1080/1280*720   25fps/30fps

White balance

Automatic/manual/sunny/cloudy/dusk/Incandescent/sodium/fluorescent lamp/one time tracking/automatic tracking

3D noise reduction

support

Optical magnification

20x

infrared

60-80 meters

PTZ protocol

PELCO-D/P

holder

Horizontal rotation Angle

360 °

Vertical rotation Angle

- 20 ° ~ 90 °

battery

Large capacity lithium battery pack, remaining power warning

Power source

Charging time

<5 hours

Working hours

> 10 hours (room temperature)

temperature

-15℃ ~ +50℃

Working environment

humidness

< 90%

dimension

258*161mm (height * diameter)

weight

Net weight: 3.5kg, gross weight: 9.6kg
