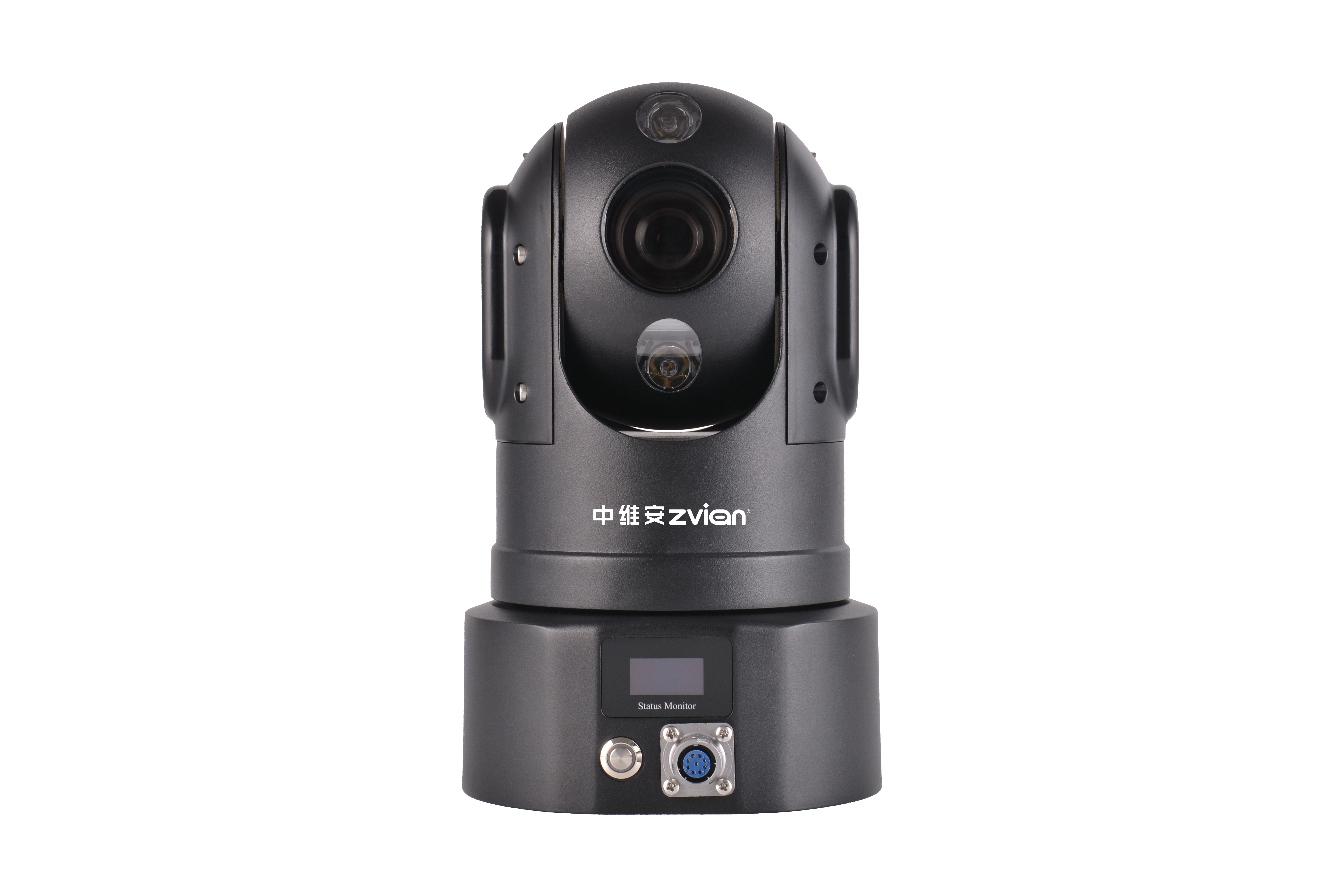

Product Name

4G High definition emergency control ball

Product model

ZWA-EC960S808

Product Description

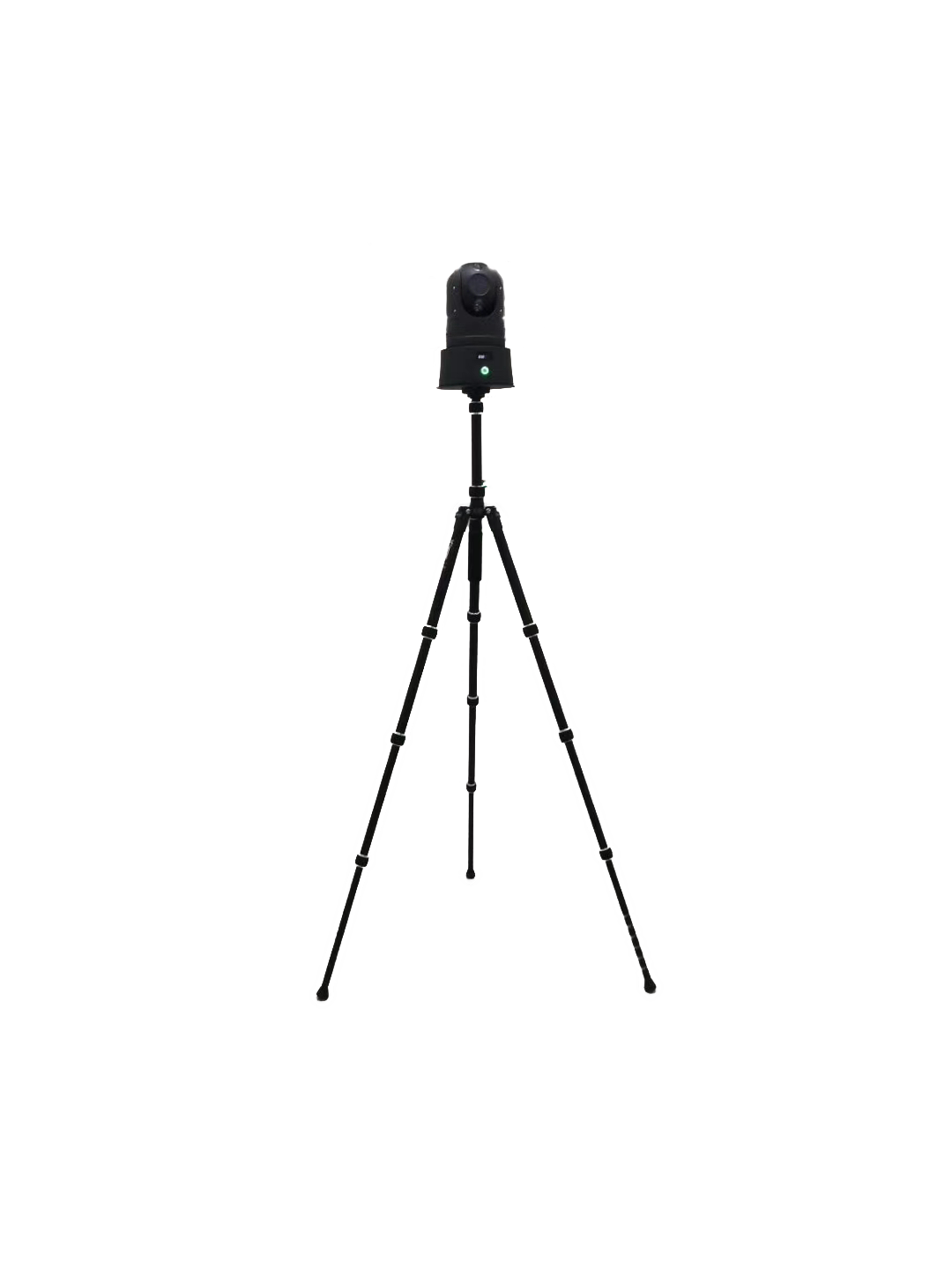

4GHigh definition deployment ball S808 is a powerful and convenient wireless video emergency command integrated product, with ultra-high device integration and protection level. It has built-in audio, high-performance lithium battery pack, external high-definition display control terminal, and standard telescopic tripod. When performing tasks, the equipment can be quickly placed at temporary monitoring points or directly attached to vehicles. After the task is completed, the equipment can be quickly removed to meet the special requirements of temporary deployment and quick installation

Product features

l &4GAll network connectivity, 1080P high-definition video, H. 265 video encoding, compatible with H.264, dual stream

l &OLEDScreen display device status: including 4G signal, dialing status, positioning status, battery level, storage capacity, etc

l &Support APN/VPN working mode

l &Built in GPS+Beidou module for precise positioning

l &Built in WIFI, supports AP and STA working modes

l &Supports TF card storage of any capacity and encrypted storage

l &Built in pickup and speaker, supporting two-way voice intercom

l &Built in battery, can work continuously for no less than 8 hours at room temperature.

l &Integrated design, fully built-in antenna, bottom equipped with high suction magnet, quick installation

l &IP66Protection level body,; IP67 portable protective box

Video

Video compression format

H. 265/H.264Video compression encoding

Dual stream

Main and auxiliary code streams

Resolution

1080P/720P/480P

Preview function

Support

Audio

Intercom

Built in speaker, built-in pickup, supporting two-way intercom

Display

Support

0.91 inch OLED display screen; Can display device operation information

Local control

Support

3D control keyboard (optional)

Storage

Local storage

1 TF card, no capacity limit, encrypted storage (supports dual TF cards)

GPS/Beidou

Built in GPS/BD dual-mode

Expansion interface

RJ45 network interface, analog video output, 485 interface, charging interface

Camera

Sensor type

1/2.8; Progressive Scan CMOS

Signal system

PAL/NTSC

Minimum illumination

Color: 0.05Lux @ (F1.6, AGC ON)

Black and white: 0.01Lux @ (F1.6, AGC ON)

Day night conversion mode

ICR infrared filter type

Signal-to-noise ratio

Greater than 52dB

Electronic shutter

1/1 seconds~1/30000 seconds

Number doubling

12 times

Resolution

1920x1080/1280 * 720  25fps/30fps

White balance

Automatic 1/Automatic 2/Indoor/Outdoor/Manual/Sodium/Fluorescent

3D noise reduction

Support

Optical zoom

20 times (25 times or 30 times optional)

Infrared

60-80 meters

Gimbal

Pan tilt protocol

PELCO-D/P

Horizontal rotation angle

360 °

Vertical rotation angle

-15 °~90 °

Power supply

Battery

10400 milliampere, large capacity lithium battery pack, remaining battery prompt

Charging duration

≪ 4 hours

Working hours

≫ 8 hours (room temperature environment)

Work environment

Temperature

-15 ℃~+55 ℃

Humidity

≪ 95%

Size

Host

Maximum height 244 * maximum diameter 146 (Hmax * Dmax)

Weight

Net weight 4kg, gross weight: 11kg

Standard accessories

Protective box * 1/Triangle bracket * 1/Tray * 1/Charger * 1/Power cord * 1/Aviation cable * 1

Optional accessories

32G/64G/128G/256GMemory card/7-inch control console (including docking cable)
