Product model

ZWA-EC960S809

Product description

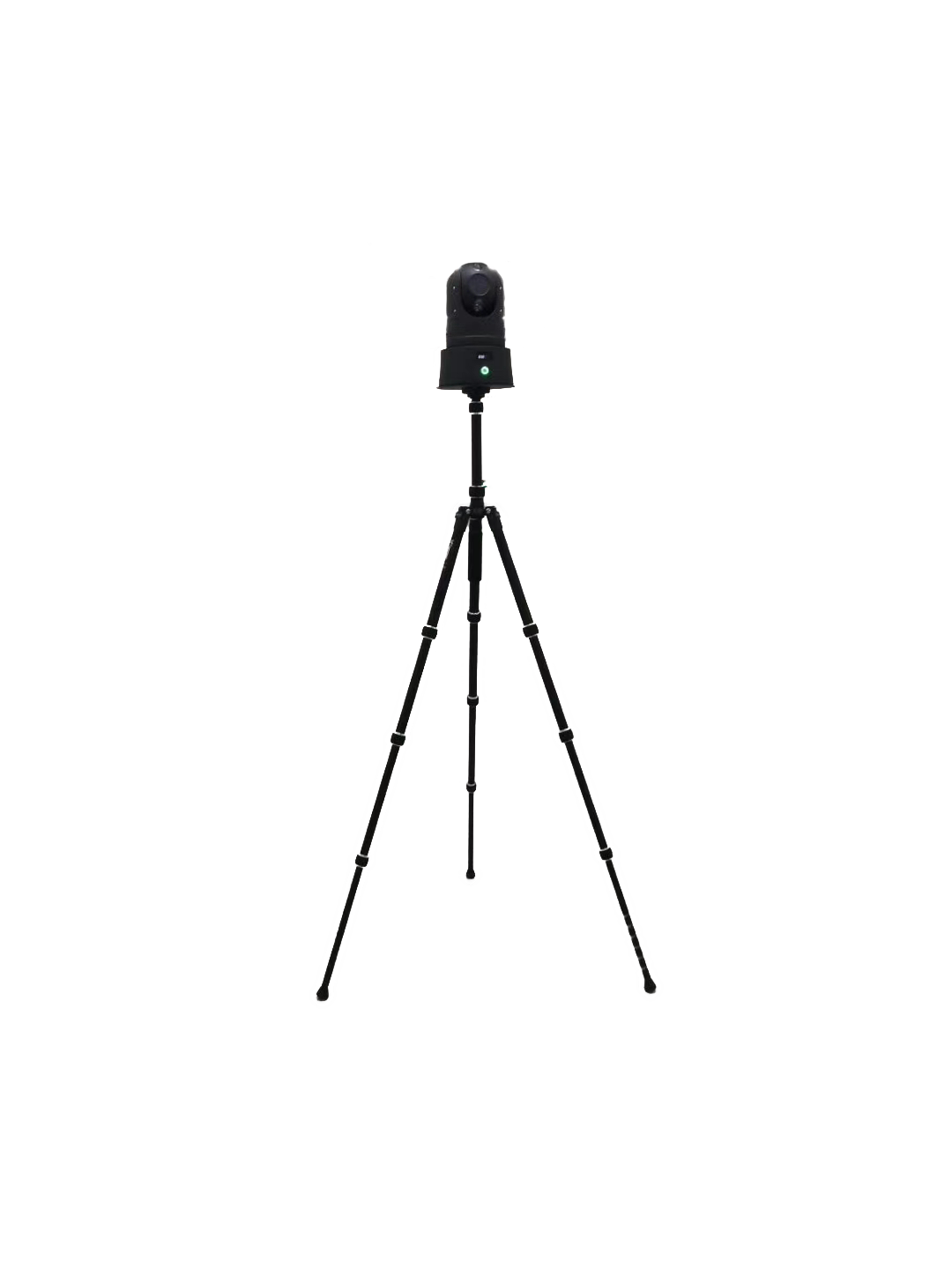

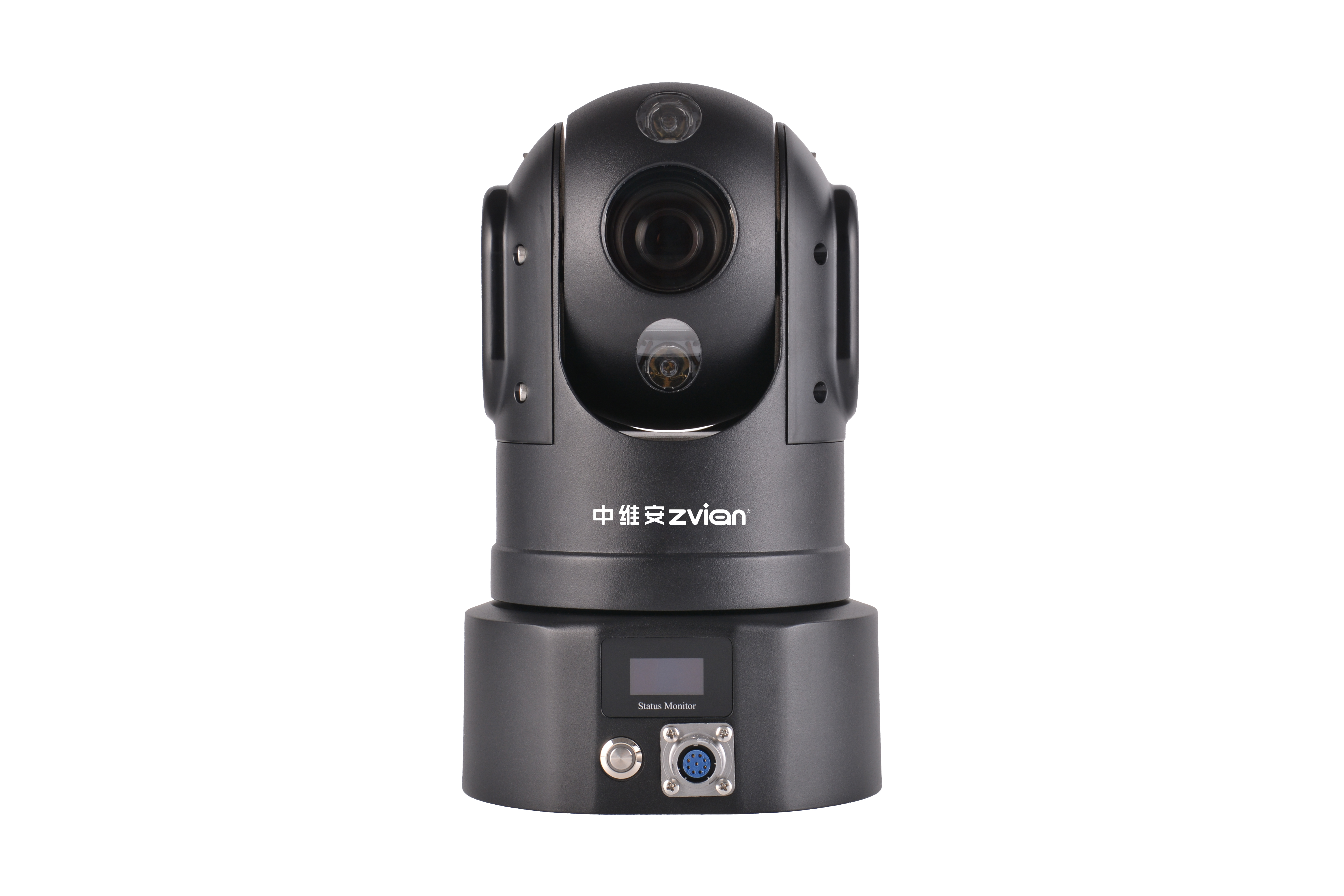

ZWA-EC960S809 5G HD PTZ is a full-featured, portable wireless video emergency command integrated product with ultra-high equipment integration, built-in high-performance lithium battery pack, external HD display control terminal, waterproof and shock-proof features, which can meet the special requirements of temporary deployment control and rapid installation. When performing tasks, the equipment can be quickly temporarily placed in the position that needs to be monitored, or on the telescopic tripod, or directly adsorbed on the vehicle, and the equipment can be easily removed at the end of the task. It is suitable for field law enforcement, investigation and control, security and security, emergency command, emergency repair, patrol management and other industry applications, such as public security, traffic police, fire, road administration, urban management, traffic, courts, prisons, forestry, electricity, water conservancy, environmental protection and other units.

Product characteristics

1080P HD video, H.265 video coding, backward compatible with H.264, dual stream, 5G mode, support 3K/4K video resolution

l Support OLED display device status: 5G/4G signal strength, dial status, positioning status, battery power, storage capacity and other device status information

l Support 5G SA and NSN, downward compatible with 4G domestic band full Netcom

l Support APN, VPN working mode

l Built-in GPS/ Beidou module for accurate positioning

Built-in WIFI, can support both AP and STA working mode

l Device status visualization, support device side,PC, mobile client can obtain battery power in real time

l Integrated design, full built-in antenna

l Built-in battery, support continuous operation of not less than 8 hours (room temperature environment)

l Integrated design, high suction magnet at the bottom, quick installation

l IP66 protection grade body, IP67 portable protection box

video

Video compression format

H.265/H.264 video compression coding

Dual stream

Primary and secondary streams

Resolution

1080P/720P/480P

Preview function

support

Audio frequency

Bluetooth intercom

About 10-15 meters, support two-way intercom

reveal

support

0.91 inch double color Oled display, can display equipment operation information

Local control

support

3D control keyboard (optional)

store

Local storage

1 TF card, no capacity limit, encrypted storage (support for dual TF cards)

Wireless network

4G

B1,B2,B3,B4,B5,B7,B8,B9,B12,B13,B14,B17,B18,B19,B20,B25,B26,B28,B29,B30,B32,B34,B38,B39,B40,B41,B42,B48,B66,B71

5G

n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71

WIFI

Built-in WIFI module, support 802.11b/g/n

orientation

GPS/ Beidou

Built-in GPS/BD dual mode

Extension interface

RJ45 network interface, analog video output, 485 interface, charging interface

camera

Sensor type

1/2.8" Progressive Scan CMOS

Signal system

PAL/NTSC

Minimum illumination

Color: 0.05 Lux@ (F1.6, AGC ON)

Black and white: 0.01Lux @(F1.6, AGC ON)

Day-night switching mode

ICR infrared filter type

Signal-to-noise ratio

Greater than 52dB

Electronic shutter

1/1 second to 1/30,000 second

Digital magnification

16x

Resolution

1920x1080/1280*720 25fps/30fps

White balance

Auto 1/ Auto 2/ Indoor/outdoor/manual/sodium lamp/fluorescent lamp

3D noise reduction

support

Optical magnification

20x (25x or 30x optional)

infrared

60-80 meters

holder

PTZ protocol

PELCO-D/P

Horizontal rotation Angle

360 °

Vertical rotation Angle

To 15 ° ~ 90 °

Power source

battery

Large capacity lithium battery pack, remaining power warning

Charging time

<4 hours

Working hours

>8 hours (room temperature)

Working environment

temperature

-15℃ ~ +50℃

humidness

< 90%

dimension

Host machine

244*146mm(Max height * Max diameter))

weight

Net weight 4kg, gross weight: 11kg
