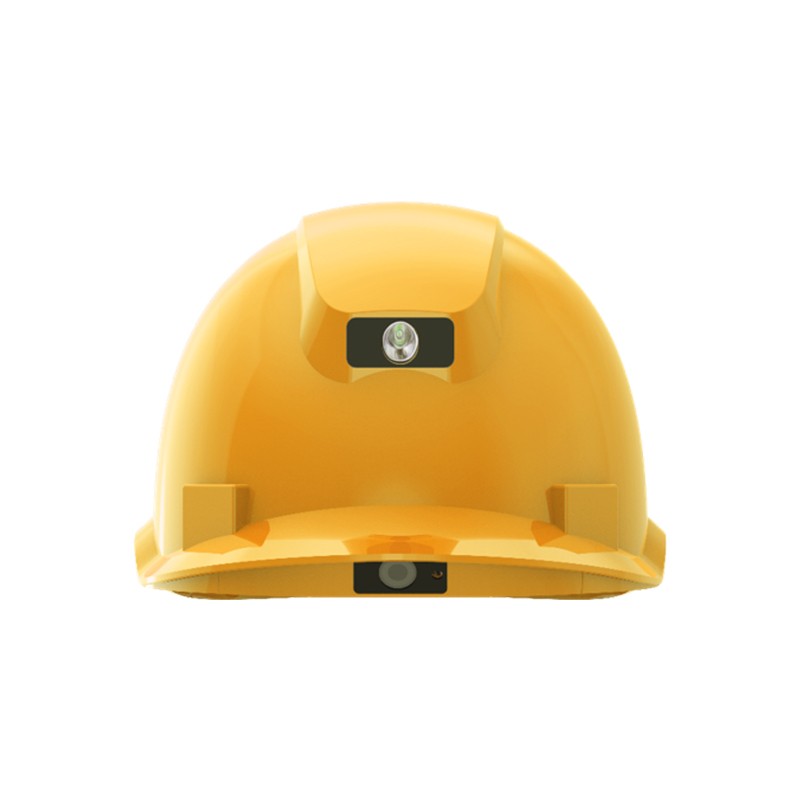

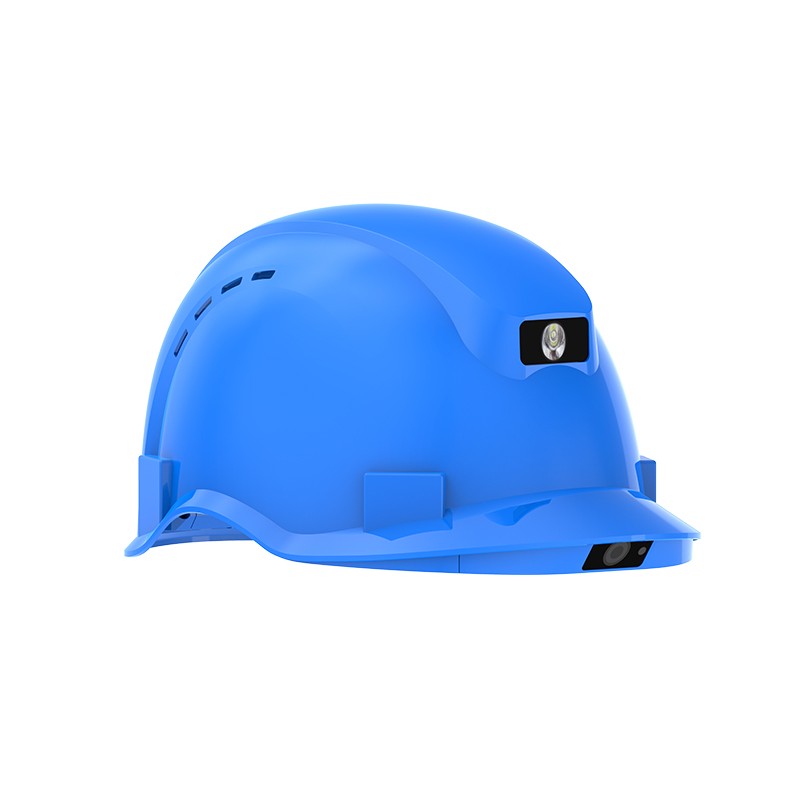

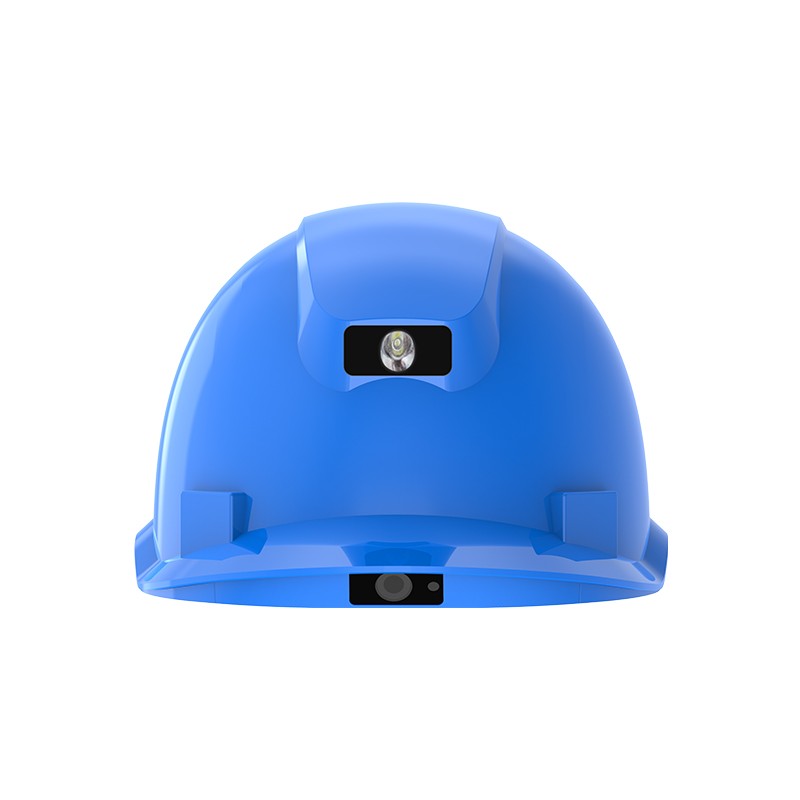

Product model

ZWA-D1

Functional characteristics

Ø 32 million HD wide dynamic camera, tilted down 35°, the best visual field of the human eye, what you see is what you get

Ø Built-in laser light and LED white light, irradiation distance of 20M, can be used as positioning and lighting

Ø Real-time voice and video command deployment, accept task distribution, security broadcast, QR code equipment write-off

Ø Support GPS/ Beidou global positioning module, support public network assisted positioning

Ø The whole process of personnel management real-time positioning monitoring, inspection route setting, inspection track and inspection point specific operation time

Ø Mass storage, support 256G TF card cycle overlay storage, 1080p storage time 120h, 720p storage about 380h

Ø A variety of protocols support GB28181 national standard protocol, proprietary protocol

Ø One button SOS/ Cap off/electric field strength detection/low battery/high temperature/drop/impact/static/dangerous area alarm

Ø Built-in 4000mAh large-capacity lithium battery, support ultra-long 8 hours stable work

Smart backup: In the case of supporting WIFI, the stored data is automatically backed up to the specified server, and the key marked files will not be cyclically overwritten

Basic parameter

Operating system

Android 7.1 operating system

System storage

2GB RAM+ 16GB ROM Standard 4GB RAM+ 64GB ROM premium

Video parameter

camera

Built-in HD distortionless wide-angle camera, field of view Angle: 100° Distortion: ≤0.5%

Laser lamp

Support laser light shooting positioning

floodlight

Support LED lighting, irradiation distance of 20M

Encoding format

H.265/H.264 video codec

Resolution

1080P/720P/VGA Optional

Video frame rate

The value ranges from 1 to 30 frames. The default value is 25fps

Code stream

64kbps~8Mbps can be set, support dual-code stream

Video format

Standard MP4; Single file recording time 5-30 minutes can be set, support circular recording

Audio parameter

Audio input

Built-in dual MIC input or Bluetooth headset input

Audio output

Built-in speaker output or Bluetooth headphone output

Compression standard

ADPCM/G711.A/AMR

Extended storage

TF card interface

Built-in TF card slot supports up to 256G extended storage

Wireless connection

3G/4G network

Support 4G full Netcom (mobile, Unicom, telecom)

WIFI network

Support 802.11b/g/n/ac protocol, 2.4G&5G dual-band, support WIFI hotspot

Bluetooth

Bluetooth: BT4.1, backward compatible with 3.0, 2.1

orientation

GPS/ Beidou

Built-in GPS/ Beidou global positioning module

Give an alarm

Alarm support

One click SOS alarm

Pilot lamp

Status light

Red and green lights

Charging light

Red and green lights

port

TF card /SIM card /USB

Micro SD (TF) card slot, Nano SIM card slot, Micro USB2.0 interface

Intelligent backup

WIFI automatic upload

The video files stored by the device are automatically uploaded to the server in WIFI state

Key file mark

Key files marked with IMP start will not be overwritten by the video loop

Acquisition station

Support customized add-ons for large customers based on business scenarios

other

Class of protection

2 meters high bare machine drop fuselage and data are not damaged

Power source

3.7V/4000mAh, support separate charging, high temperature automatic power off; Working hours 8H

colour

Red, yellow, and blue are optional

dimension

Length × width × height: 288×215×161mm

Weight (about 610g)

Cap weight: 420g, cap rope weight: 95g, battery weight: 95g

Operating temperature and humidity

Temperature: -20℃~55℃; Humidity: 10%~90%
