As the service carrier platform of the integrated video and audio management platform software system, the Gan 'an series application control center takes the deep application of data as the core, providing the front end with high-performance, highly reliable and highly integrated multimedia service support such as business application and business management. It can be used as an independent law enforcement video and audio recording system, and can also be networked and integrated with other business platforms to form an integrated application system. To realize the purpose of resource sharing, supervision and law enforcement.
Technical specification
Product model | ZWA-GS2098 | ZWA-GS2212 |
Access user | 500 | 1000 |
Concurrent terminal | 200 | 500 |
Product function | Includes the standard version of video and audio integrated management platform software (dispatching cloud platform, basic functions and functions include intelligent control, video image transmission, video call, voice intercom, track tracking, command delivery, multi-screen monitoring, video and audio data management, equipment management, system management, etc.) | |

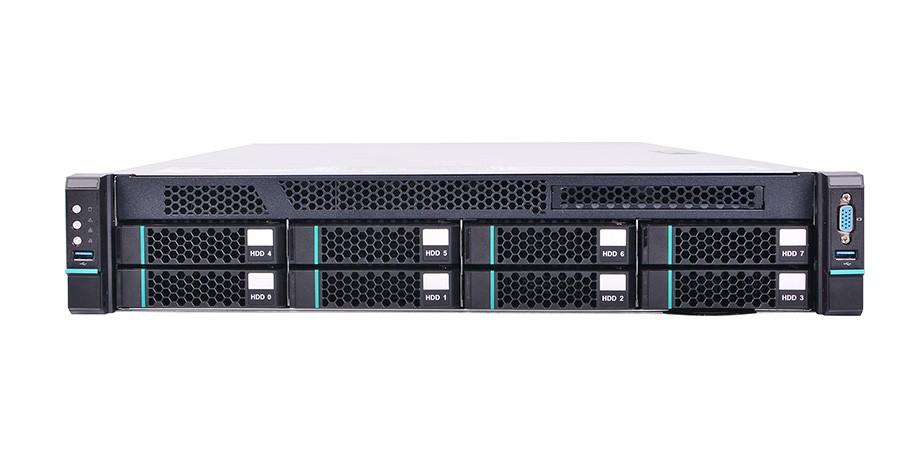

Chassis specification | 2U8 Two-channel server with disks | 2U12 Two-channel server with disks |
CPU | 2 X Intel Xeon Silver 4210 Processor/ 2.20GHz /13.75MB/10C/20T/ 85W /2UPI/2400 MHz | Two Intel Xeon 4210R cpus are configured. Each CPU has 10 cores and the frequency is 2.4GHz
|
SSD | 1 X SSD/240GB/SATA 6Gb/2.5 "/ Read type <1DWPD | 1 X SSD/500GB/SATA 6Gb/2.5 "/ Read type <1DWPD |
Internal memory | 2 X 16GB/DDR4/2133 or 2400 or 2666MHz/ECC/REG | It supports 256GB DDR4 ECC RDIMMs, 24 memory slots, a maximum of 3TB memory capacity, memory ECC protection, memory mirroring, memory hot backup, and NVDIMM and NVDIMM-N memory to prevent memory data loss in the event of an unexpected power failure |
Hard disk storage | One enterprise-class SAS hot swappable hard disk is configured | Configure two 1.2 TB 10K SAS enterprise-class hot swappable disks |
Storage type | SATA, SAS, SSD | |
Hard disk interface | Front: Supports eight 2.5/3.5-inch SAS, SATA, or SSD disks Built-in: 1 PCI-E M.2 SSD Rear: Supports two 2.5-inch SAS, SATA, or SSD disks, or two 2.5-inch U.2 SSDS | |
Array card | No array card is available as standard | 1 X LR382A/8 ports /SAS 12Gb/ half-height /PCIe 3.0 x8/1GB cache/RAID support |
Storage type | SATA, SAS, SSD | |
Raid type | On-board integrated SATA RAID 0, 1, 5, and 10 support | |
net | Integrated two gigabit GE network ports; Optional external Gigabit and 10-gigabit network card and Gigabit OCP module | |
Other ports | USB2.0 interface: 2 (rear 2) USB3.0 ports: 3 (front 2, internal 1) VGA port: 1 (1 at the rear) Management network port: 1 (one at the rear) | |
Electric source | A 550W platinum AC power module is standard; Supports 1+0 single power mode or 1+1 redundant power mode | |
Support operating system | Windows Server 2012 R2 Red Hat* Enterprise Advanced Server 7.5 | |
